ARCT series

ARCT series

Regular price $0.00USD
Regular price Sale price $0.00USD
Sale Sold out
Shipping calculated at checkout.
TYPE
The flexible Rogowski coil of the high-accuracy split-core current transformers offer significant installation advantages over the general split-core CT’s because of their light weight, wide current(10-5000+ Amps), mechanical flexibility for mounting in tight quarters and easy placement around cable bundles or large busbars. Offered in 80, 115, 180, and 300 mm window sizes, the ARCT-D series is the most accurate Rogowski coil in submetering.

FEATURES
- In the following graphs, a positive phase angle error indicates that the output of the Rogowski coil CT with an integrator leads the primary current.
- Graphs show typical performance at 25°C, 50/60Hz
- Performance Graphs
– The standard CT meets IEEE C57.13 class 0.6 standard & IEC 61869-2 class 0.5S standard

DOWNLOAD

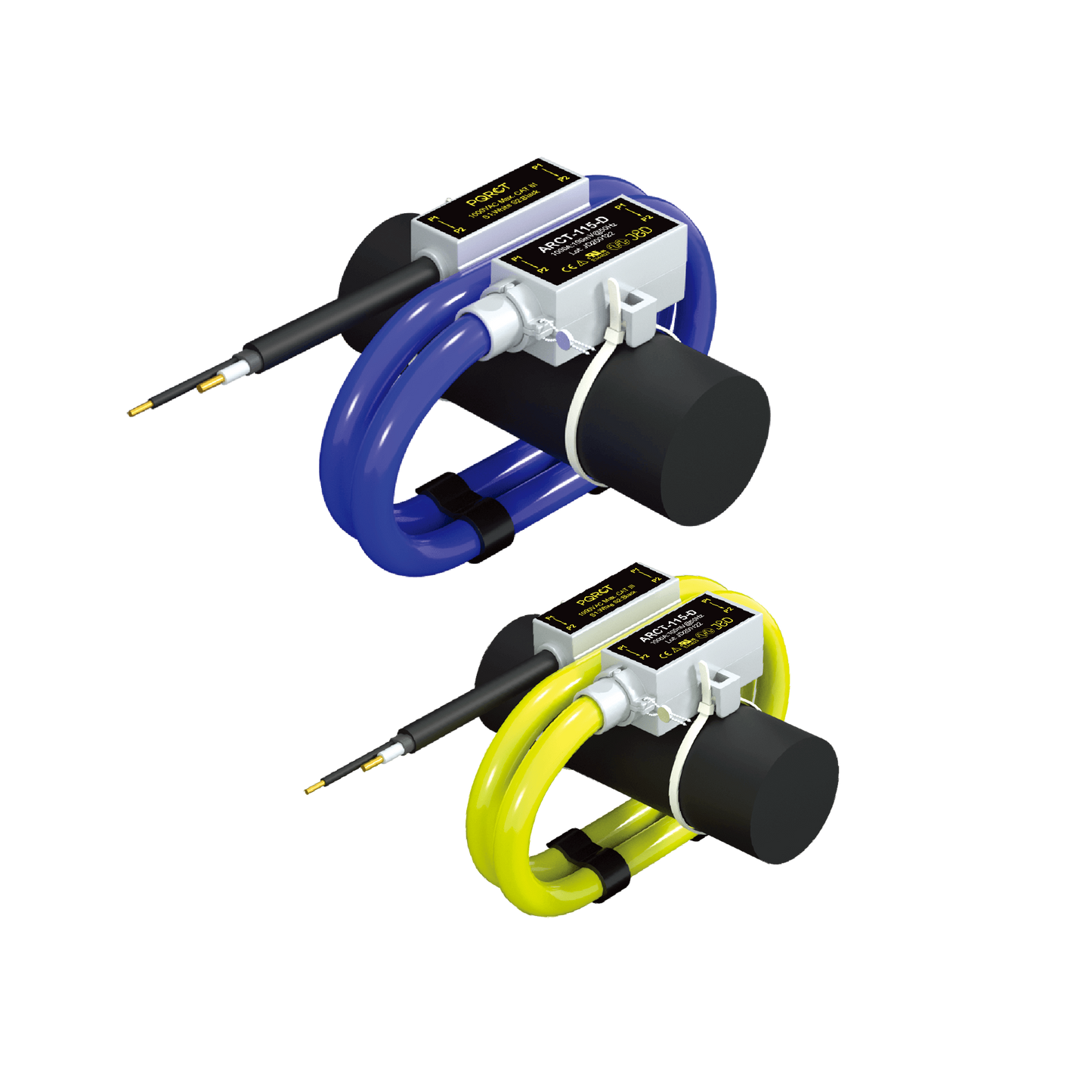

ARCT-XXX-D (PDF)

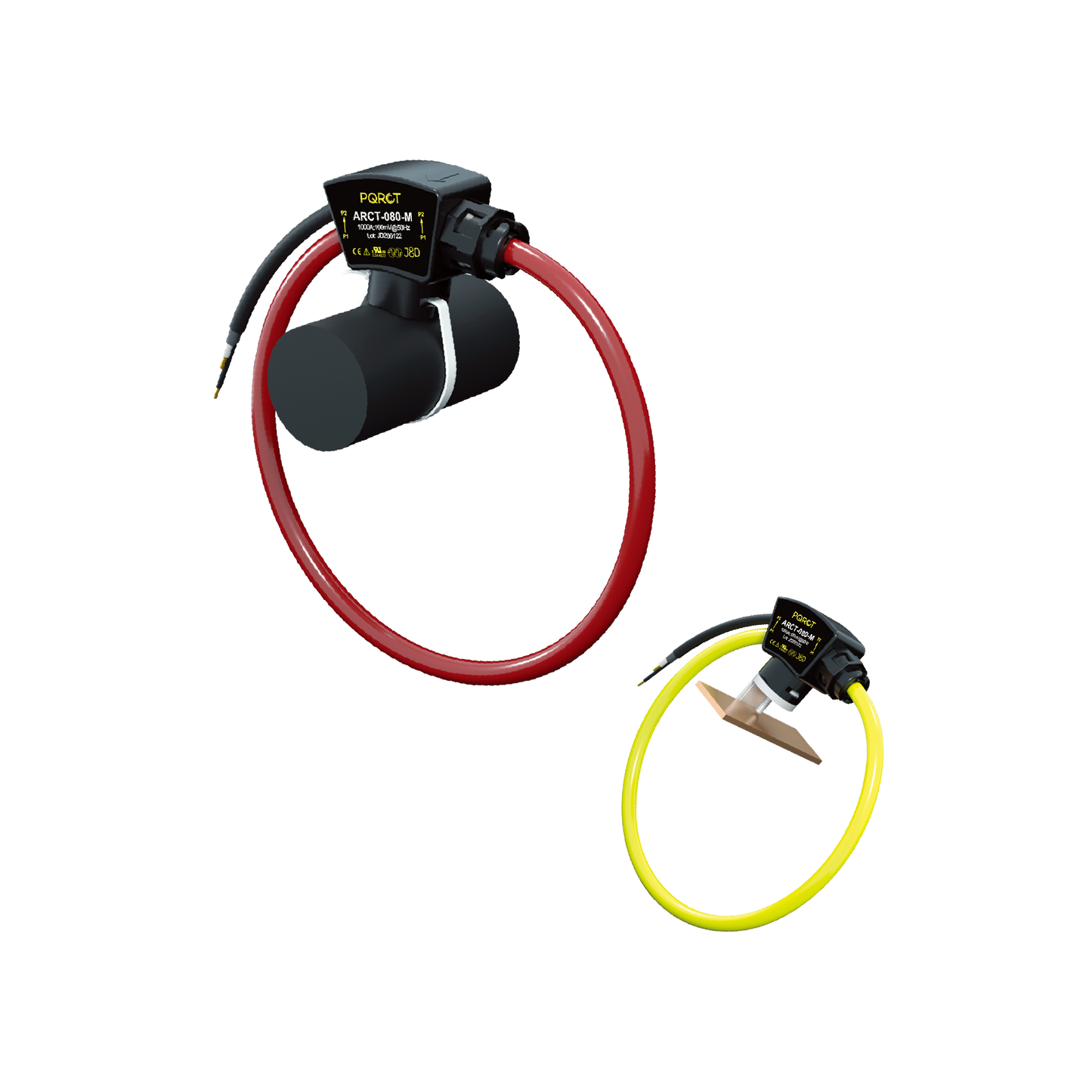

ARCT-XXX-M (PDF)
ARCT-XXX-M-ID (PDF)
ARCT-XXX-M-MOI (PDF)

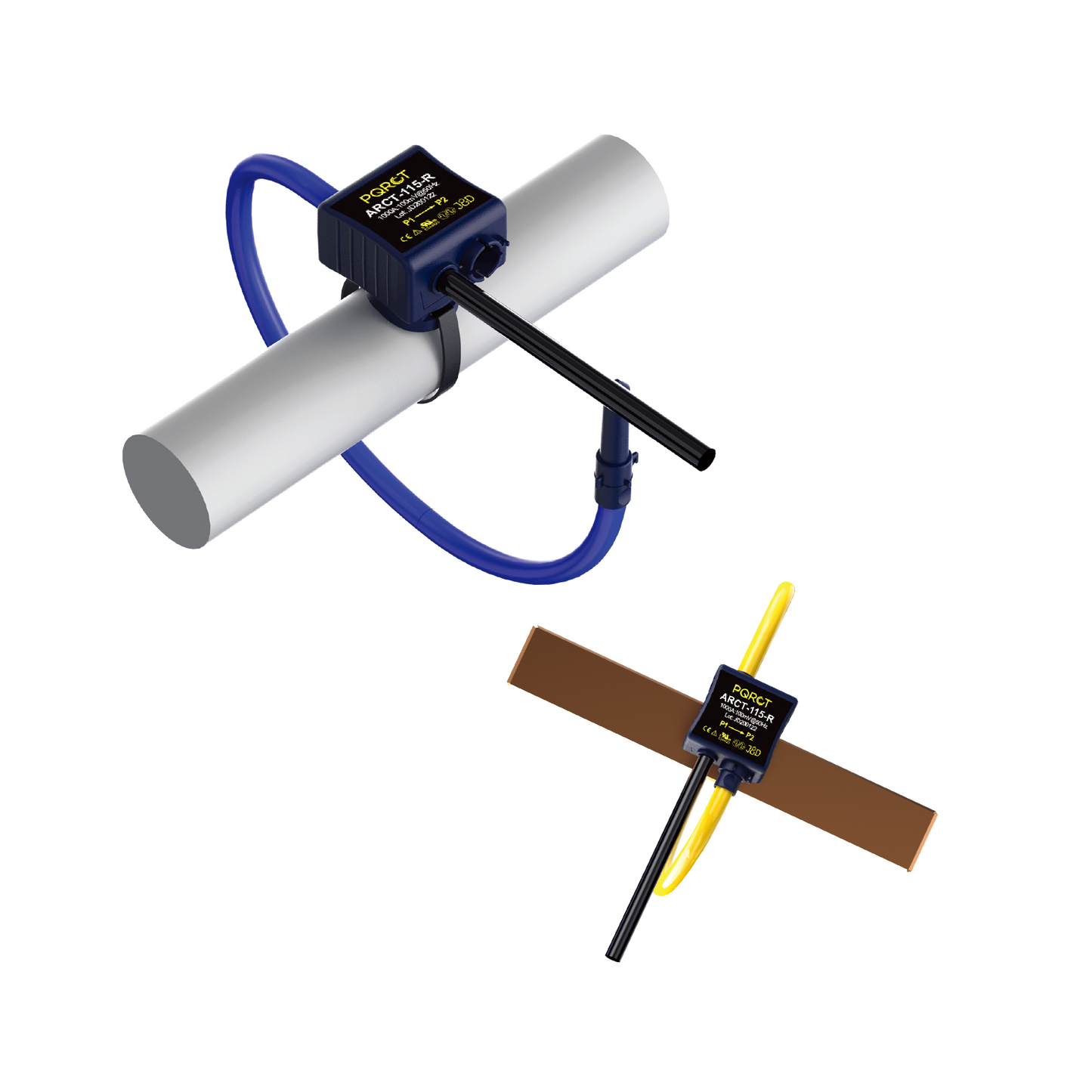

ARCT-XXX-R (PDF)

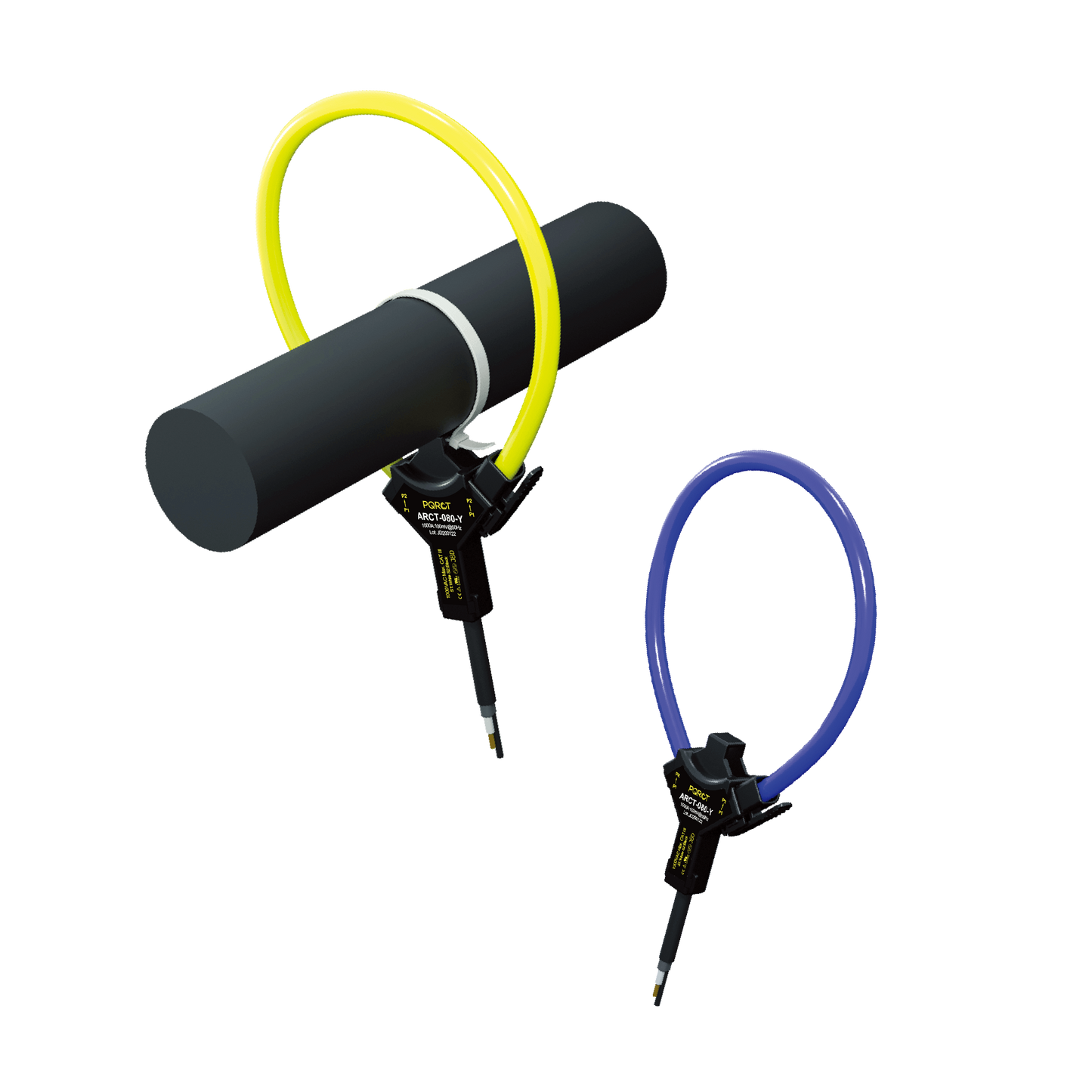

ARCT-XXX-Y (PDF)
