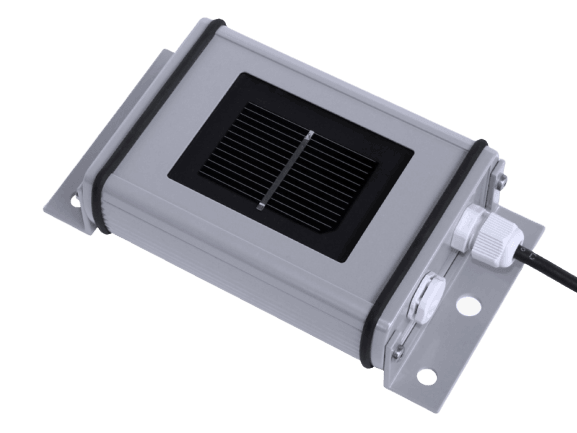

IoT Environmental sensor Irradiance Sensor
• Solar cell: Monocrystalline silicon (50 mm x 33 mm)
• Operating temperature: -35°C to 80°C
• Electrical connection: 3 m shielded cable
• Load impedance for Si-V-1.5TC-batt: minimal 1 MΩ
• Load impedance for Si-V-1.5TC and -TC-T, Si-V-10TC and -TC-T: min. 10 kΩ
• Load impedance for Si-I-420TC and -TC-T: minimal 20 Ω and maximal 400 Ω
• Case, protection mode: Powder-coated aluminium, IP 65
• Dimension, weight: 155 mm x 85 mm x 39 mm, approx. 350 to 470 g
• Customs number for all sensors: 85 41 40 90
• Protocol: M&T (type -MT), MODBUS RTU (type -MB)
• Interface: RS485 up to 38.4 kBaud
• Galvanic isolation: 1.000 V between power supply and bus
Data sheet
• Solar cell: Monocrystalline silicon (50 mm x 33 mm)
• Operating temperature: -35°C to 80°C
• Electrical connection: 3 m shielded cable
• Load impedance for Si-V-1.5TC-batt: minimal 1 MΩ
• Load impedance for Si-V-1.5TC and -TC-T, Si-V-10TC and -TC-T: min. 10 kΩ
• Load impedance for Si-I-420TC and -TC-T: minimal 20 Ω and maximal 400 Ω
• Case, protection mode: Powder-coated aluminium, IP 65
• Dimension, weight: 155 mm x 85 mm x 39 mm, approx. 350 to 470 g
• Customs number for all sensors: 85 41 40 90
• Protocol: M&T (type -MT), MODBUS RTU (type -MB)
• Interface: RS485 up to 38.4 kBaud
• Galvanic isolation: 1.000 V between power supply and bus
